Bluetooth Wireless Gateway - C Solutions

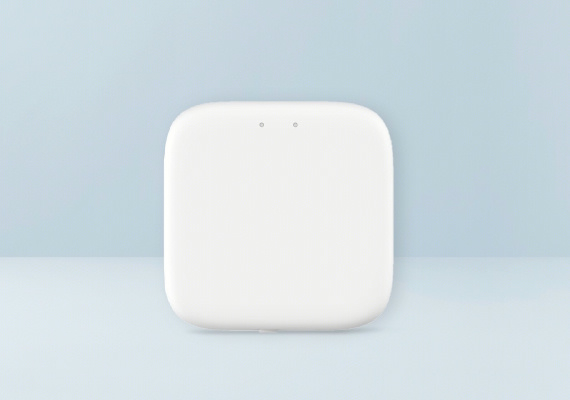

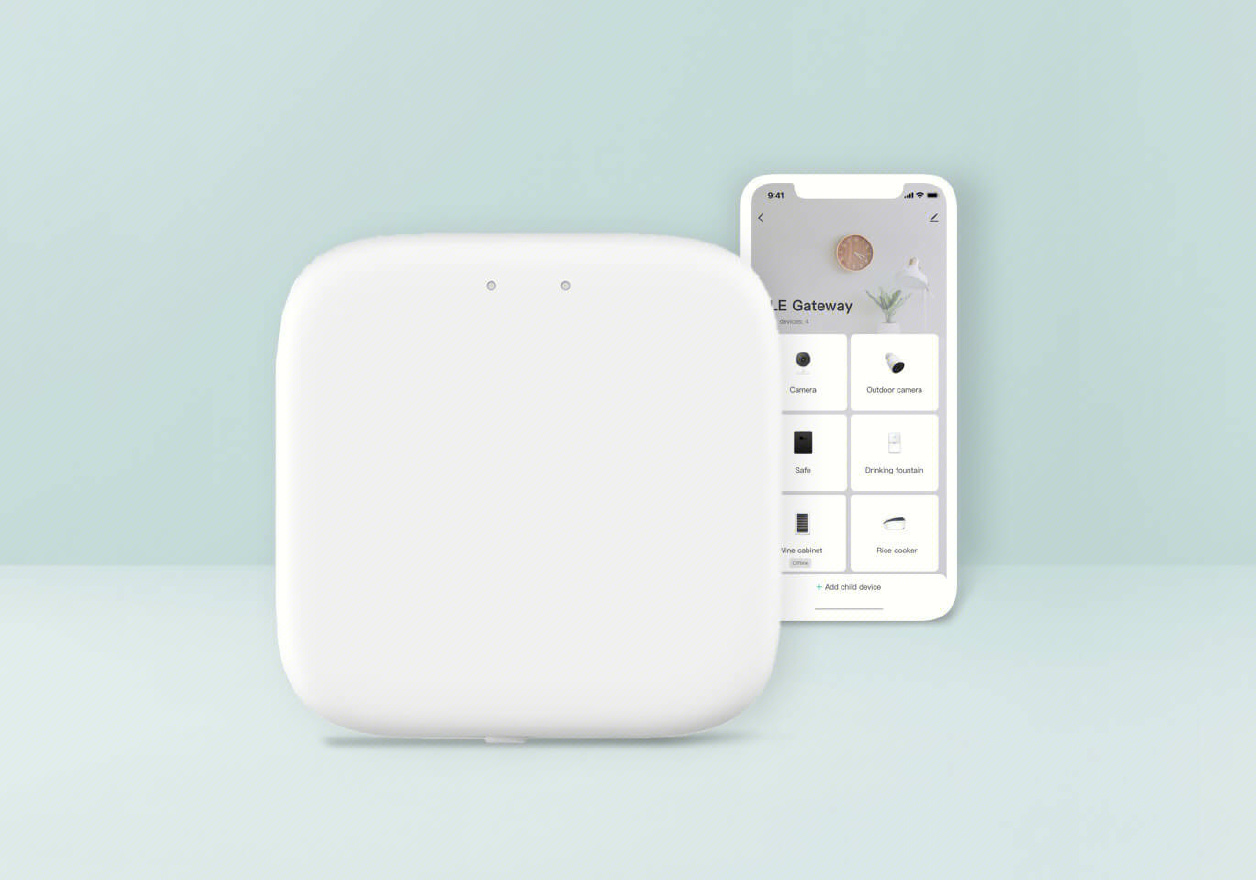

The Bluetooth SIG Mesh gateway is an ultra-compact smart Bluetooth gateway product. It consists of a highly integrated Wi-Fi module, a Bluetooth low energy (BLE) module, and a motherboard. With the Tuya Smart app, you can add or reset devices, use third-party control and Bluetooth group control for scenarios such as smart home.

Parameters

Communication Capability:Wi-Fi+ Bluetooth dual protocol

Applicable module:CR3L

Development Mode:Zero-coding development

Recommendation panel:Fresh style

Power consumption type:General power consumption

Functional adaptation:SIG mesh and single BLE device

Number of nodes/Pcs:Bluetooth Mesh + BLE sub-device 128pcs; Number of connected BLE nodes in real-time 1pcs

Communication distance（range of visibility）/m:indoor 35m, outdoor 200m+

Scenarios

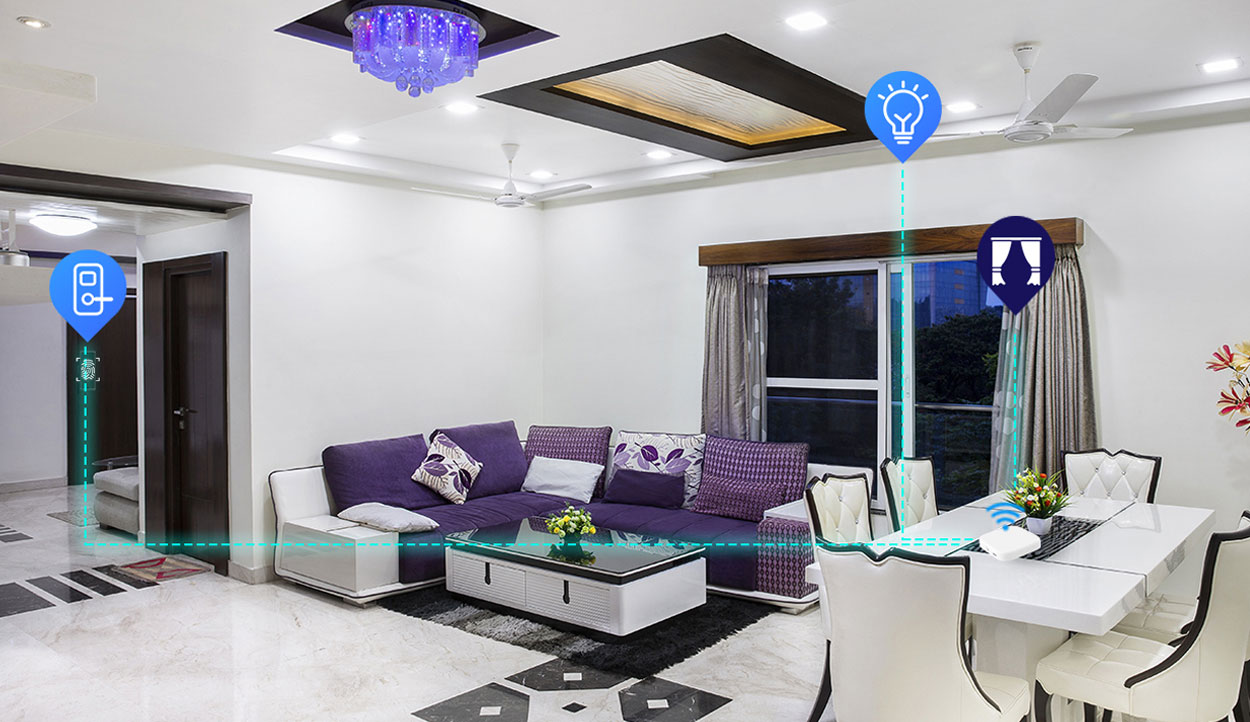

Coming home

After you unlock the Bluetooth smart lock with your fingerprint, the preset home mode is automatically activated, turning on the lights and opening the curtains to welcome you home.

At home

The air conditioner is automatically turned on when the temperature and humidity sensor detects that the temperature is too high or too low. When the temperature and humidity sensor detects that the humidity is too low, the humidifier is turned on.

Solution Benefits

High cost effectiveness

Provide robust performance with an outdoor transmission range over 200 meters. Support a maximum connection of 128 sub-devices. Provide stable and reliable control of sub-devices as part of the affordable and highly competitive solutions.

Convenient networking

Users can connect multiple sub-devices simultaneously instead of doing it one by one. They can also connect sub-devices when there is no network connection.

Remote control

Support remote control of single BLE and SIG mesh devices under the gateway by using mobile phones. Provide hassle-free device control regardless of the physical distance.

Quick control in multicast/scenarios

The gateway supports large-scale multicast under normal conditions, and allows simultaneous and stable online operation of over 100 high-power devices. It supports both local scenario linkage and networked inter-gateway linkage.

SIG mesh standard protocol

Products are developed using the SIG mesh standard protocols. Other products that are developed using SIG mesh standard protocols can be connected to the Tuya gateway for easy functional control. Support single BLE devices.

Solution Functions

Add and control sub-devices

Sub-devices can be added both online or offline for device scenario linkage, local linkage, and group control.

OTA services

According to your design preferences, products, or application styles, select a control panel that can automatically Tuya provides over-the-air (OTA) update services for the entire gateway system, including the gateway device, Zigbee master control board, Zigbee modules, and the MCUs connected to the Zigbee module. You can update their software through OTA without dismantling them.

Local scenarios and automation

If the configured scenarios or automation are all linked to Bluetooth devices, the cloud synchronizes and sends them to the gateway for storage. The system gives priority to local execution of these scenarios and automation. This function enables the system to efficiently execute the configured smart scenarios and automation in case of network disconnection.

Recommended Modules

A series of cost-effective proprietary network modules of multiple communication protocols and specifications at low cost.
